Release Agent
Types of release agents
The function of fluorine based release agents is stronger than other types, which can compensate for the insufficient performance of other types of release agents
| Type | Price | Function | Function |
| Silicone oil | Chinese | Chinese | More transfer printing and low durability |
| Wax type | Low | Low | Some uses of foamed polyurethane are limited |
| Surfactant | Low | Low | Low demolding ability |
| Fluorine class | Medium to high | Tall | High Performance |
Types of release agents
Characteristics of Fluorine based Release
Agents UR and UW Series
Agents UR and UW Series
High demolding performance
The low adhesion of fluorine compounds developed independently demonstrates high demolding properties
Repetitive demolding (sustainability)
The characteristic of fluorine-based release agents is their minimal transfer to molded products, resulting in higher film durability
Mold is not easy to get dirty
Can be demolded in the film, with less dirt on the mold and molded product
Low transferability
(non stick molded products)
There is no stickiness like silicone oil molded products
Stable size
Since the demolding coating film is a molecular-level thin film and lacks fluidity, it can be applied to molds with complex shapes, thereby improving dimensional accuracy and reducing defect rates.
The Lineup Of Release Agent UR Series
Water based and solvent based solutions can be proposed according to customer needs and applications
Improvement plans can be proposed based on customized formulas
Improvement plans can be proposed based on customized formulas
| water-Based | Solvent Based | Air Canned | |||
| Silicone oil formula | No silicone oil | Silicone oil formula | No silicone oil | Silicone oil formula | No silicone oil |
| UW-101 UW-104 | UW-103 | UR-102 | UR-105 | requires negotiation | |

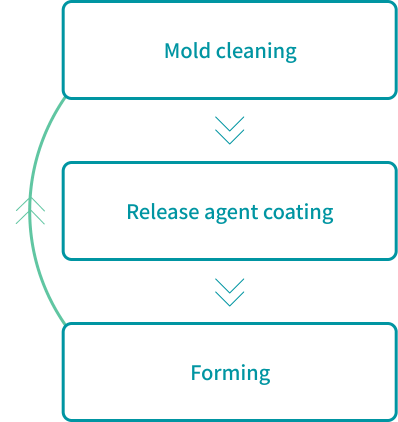

Instructions For Use
• Improve durability by combining with metal parts
• Implement mold cleaning using organic solvents, etc
• Implement mold cleaning using organic solvents, etc
• Use a spray gun, brush, and wipe to evenly apply the release agent onto the
mold. Dilute the original release agent solution by 5 times before use
• After applying the release agent, confirm if it is completely dry
• In the case of decreased demolding performance after molding, perform mold cleaning and demolding agent coating again
• In the case of decreased demolding performance after molding, perform mold cleaning and demolding agent coating again
Usage And Case Studies
Applicable materials
Various rubber materials, thermoplastic resins, thermosetting resins, plastic sheets
Specific examples
Fluororubber NBR、 Chloroxylene, polyvinyl chloride FRP、ABS、 Epoxy resin,
polyurethane, PP, PVC, etc
Forming method
Injection molding, extrusion molding, injection molding, compression molding, etc
Case
Differences in Fluorine Rubber Products
In the molding process of deep fluorine rubber with poor molding of fluorine release agents in other companies, our company's products can be applied. High durability and multiple repeated demolding cycles
